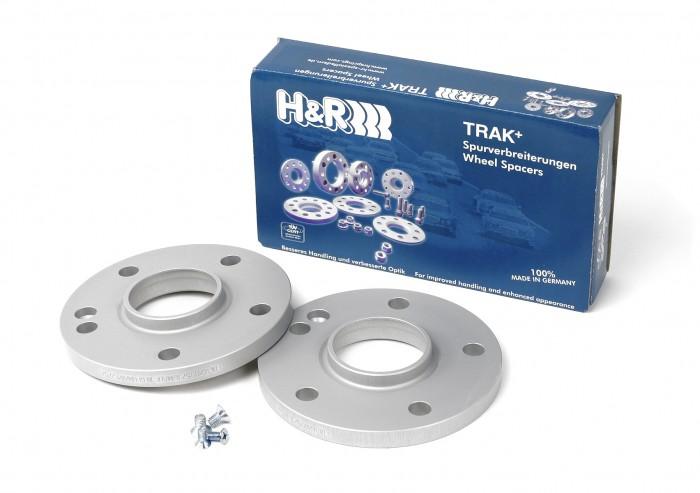

H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/120 Center Bore 74 Bolt Thread 12x1.5

Expanded product image

H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/120 Center Bore 74 Bolt Thread 12x1.5

H&R

H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/120 Center Bore 74 Bolt Thread 12x1.5

Sale price: $117.99 Regular price: $130.43 Save 10%

Product details

Details & fitment

All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a)If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. The bolt head must be identical to the existing bolt: Taper 60: End digit 01 Round head for M12/d24 mm, M14/d28 mm: End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels): End digit 03 Flat head for Porsche original wheels M14 x 1.5: End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

This Part Fits:

Year Make Model Submodel
2001-2003 BMW 525i Base
1997-2000 BMW 528i Base
2001-2003 BMW 530i Base
1997-2003 BMW 540i Base
2000-2003 BMW M5 Base
2007-2008 BMW X5 3.0si
2007-2008 BMW X5 4.8i
2010-2013 BMW X5 M
2009-2010 BMW X5 xDrive30i
2009-2013 BMW X5 xDrive35d
2011-2013 BMW X5 xDrive35i
2009-2010 BMW X5 xDrive48i
2011-2013 BMW X5 xDrive50i
2010-2011 BMW X6 ActiveHybrid
2010-2014 BMW X6 M
2008-2014 BMW X6 xDrive35i
2008-2014 BMW X6 xDrive50i

Shipping & returns

Shipped from our Winnipeg shop to anywhere in Canada.

Will it fit my vehicle?

Not sure? Send us your year, make and model and we'll confirm fitment before you order.
