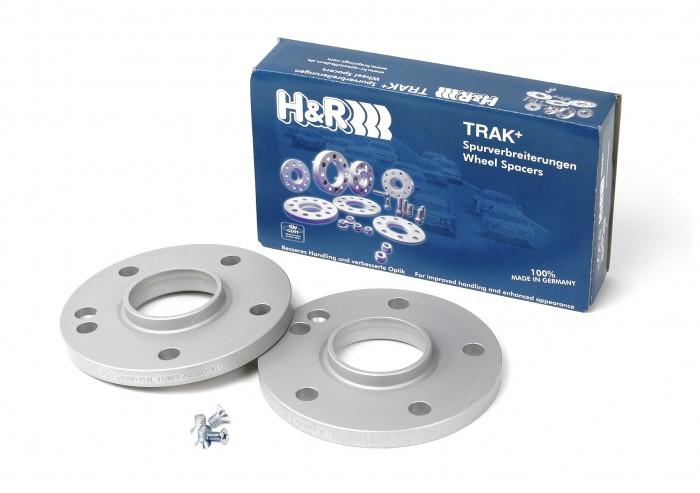

H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/108 Center Bore 65 Bolt Thread 12x1.75 - Black

Expanded product image

H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/108 Center Bore 65 Bolt Thread 12x1.75 - Black

H&R

H&R Trak+ 5mm DR Wheel Adaptor Bolt 5/108 Center Bore 65 Bolt Thread 12x1.75 - Black

Sale price: $130.99 Regular price: $144.93 Save 10%

Product details

Details & fitment

All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a)If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. The bolt head must be identical to the existing bolt: Taper 60: End digit 01 Round head for M12/d24 mm, M14/d28 mm: End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels): End digit 03 Flat head for Porsche original wheels M14 x 1.5: End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

This Part Fits:

Year Make Model Submodel
1994-1997 Volvo 850 Base
1995-1997 Volvo 850 GLT
1996-1997 Volvo 850 R
1997 Volvo 850 T-5
1995 Volvo 850 T-5R
1994-1996 Volvo 850 Turbo
1998-2004 Volvo C70 Base
2004-2005 Volvo S60 2.4
2001-2003 Volvo S60 2.4T
2004-2009 Volvo S60 2.5T
2001-2003 Volvo S60 Base
2001-2009 Volvo S60 T5
1998 Volvo S70 T5
2004-2006 Volvo S80 2.5T
2004-2006 Volvo S80 2.5T AWD
1999-2004 Volvo S80 2.9
1999-2005 Volvo S80 T6
2005 Volvo S80 T6 Premier
1998-1999 Volvo V70 AWD
1998-1999 Volvo V70 Base
1998-1999 Volvo V70 GLT
1998 Volvo V70 R
1999 Volvo V70 R AWD
1998-1999 Volvo V70 T5
1998-1999 Volvo V70 X/C AWD

Shipping & returns

Shipped from our Winnipeg shop to anywhere in Canada.

Will it fit my vehicle?

Not sure? Send us your year, make and model and we'll confirm fitment before you order.
